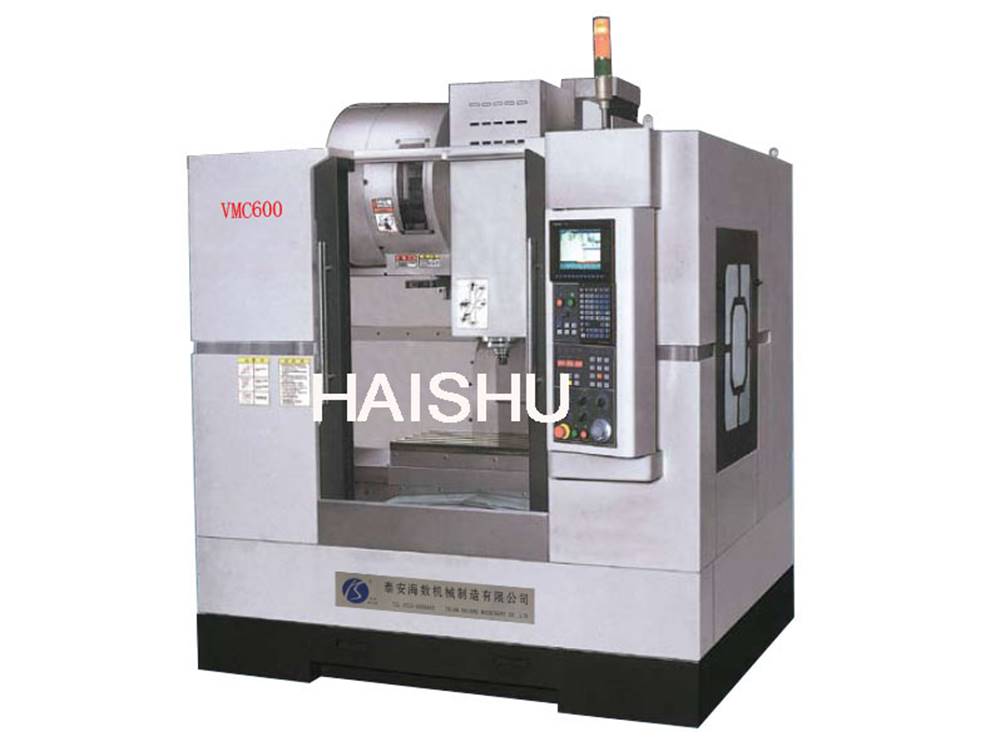

VMC600 High speed vertical machining center
UpdateTime:2021-5-26 22:04:13
Views:
Brand:HaiShu
Model:CK50数控斜轨车铣复合车床
Order Hotline:+86-538-8606169
Main features ◇X, Y, Z three axis rail, high speed, high efficiency, high precision, suitable for batch processing of three C products. ◇Taiwan high-speed, high-precision spindle 10000rpm.
Details

VMC600

High speed vertical machining center

1.     Main features

X, Y, Z three axis rail, high speed, high efficiency, high precision, suitable for batch processing of 3C products.

Taiwan high-speed, high-precision spindle (10000rpm).

Taiwan 16-capacity disc high-speed tool magazine. Tool change time is 1.1 seconds.

2.     Specifications

Item

Unit

Specifications

Table travel(XYZ)

mm

600×400×400

Table size

mm

750×420

Number/Width/Distance of T-slot

mm

3-14-100

Max.load of table

kg

200

Distance from spindle nose to table surface

mm

128528

Distance from spindle axis to column guideway

mm

480

Taper of spindle

BT40

Spindle speed range

r/min

10000

Spindle motor power

kw

 (AC servo)7.5

Rapid traverse speed(XYZ)

m/min

48/48/60

Cutting feed speed(XYZ)

mm/min

210000

Tool magazine capability

qty

16

Max.dimension of tool

mm

φ80×120

Max.weight of tool

kg

3.5

Positioning accuracy

mm

±0.005/300 JIS

Repeat positioning accuracy

mm

±0.003 JIS

Min. time of change

s

1.1

Overall dimension (L×W×H)

mm

2000×1800×2200

Machine weight

kg

3360

3.     Main configuration

Standard:

CNC system: GSK25i or M70A

RS232 Communication Interface;

Taiwan high-speed, high-precision spindle

Taiwan 16-capacity disc high-speed tool magazine.

Taiwan's precision ball screw.

Full outer stainless steel inner defense and protection.

Optional

FANUC 0i MD or Siemens 828D.

CNC fourth axis, CNC fifth axis.

Automatic chip remo val system.
